Overview
The Trimble X9 Premium is a high speed terrestrial laser scanner with a maximum range of around 150m. The unit is lightweight and compact and features automatic calibration, self-leveling and in-field registration capability.
The Trimble X9 is supplied with a Trimble tablet for instrument control and project management during data collection. We also have available a backpack for easy transport and airline carry-on and a carbon fibre tripod.
The GEF currently has 1 system available for loan. View our schedules to see equipment availability.
Specifications
Scanner
| Model | Trimble X9 Premium |
|---|---|
| Instrument type | High accuracy time-of-flight TLS with automatic calibration and integrated HDR imaging |
| Data storage | Standard SD card (32Gb SDHC supplied) |
| User interface | One-button scan operation or Trimble tablet |
| Accuracy | 2mm range, <16” angular |
| 3D point accurary | 2.3mm @ 10m, 3.0mm @20m, 4.8mm @ 40m |
| Laser Class | Class 1, eye safe in accordance with IEC EN60825-1 |
| Wavelength | 1530 - 1570nm, invisible |
| Range | 0.6m to 150m |
| Scan speed | Up to 1000kHz |
| Spot size | 0.8mrad / 7.95mm @ 10m |
| Field of view | 360° horizontal, 282° vertical |
| Imaging sensors | 3 coaxial, calibrated 10MP cameras |
| Resolution | 3840 x 2746 pixels for each image |
| Battery type | Li-Ion battery 11.1V 6.5Ah |
| Duration | Around 3.5 hours per battery, 3 batteries supplied |
| Operating temp. | -20° to +50°C |
| Storage temp. | -40° to +70°C |
| IP Rating | IP55 (dust protected and water jet) |
| Dimensions | 178 x 353 x 170mm |
| Weight | 6.045kg (including battery) |
Accessories
Trimble backpack

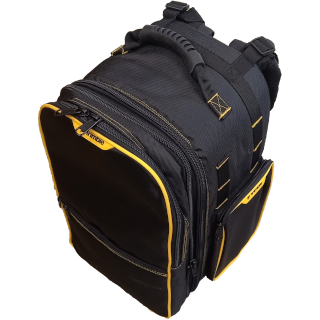

Lightweight backpack suitable for airline use.
Tripod

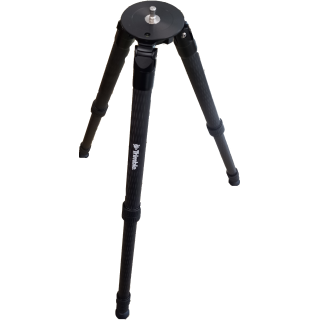

Lightweight carbon fibre tripod.
Trimble tablet

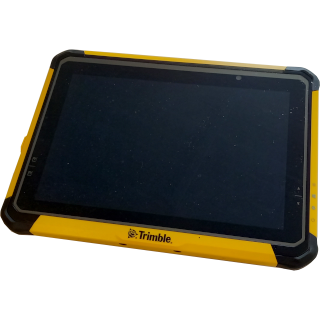

Powerful tablet with hot-swappable batteries and carry strap.
Packaging and shipping
Carry case

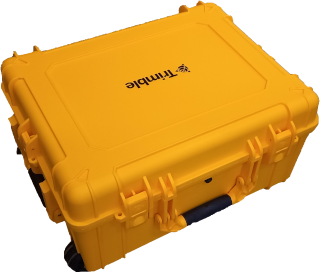

The system is supplied with a wheeled carry case that contains the scanner plus batteries.
| Width | 63 cm |
| Depth | 50 cm |
| Height | 32 cm |
| Weight | approx. 18 kg |
Courier to a UK destination
The GEF(Edinburgh) will ship loan items to the borrower by courier to UK addresses on a next day basis free of charge. It is the borrowers responsiblity to return the equipment to the GEF, on time and at their own expense via any suitable means.
Please note some GEF equipment uses Lithium Ion batteries. You may need to use a road based courier to return equipment to us, please contact us or see our guide to shipping lithium batteries for further information.
Collection from the GEF
Borrowers may collect and return equipment in person from the GEF offices (in Edinburgh and Leicester).
Shipping outside the UK
The GEF(Edinburgh) only ships to destinations within the UK. It is the borrowers responsibility to arrange transportation and all necessary customs paperwork for any temporary export and re-importation to the UK. You may arrange your own courier to collect equipment from our offices.
User training
New users of our GNSS equipment are required to be trained by Facility staff. Training usually takes place during a one day visit to the GEF offices. Previous users are encouraged to attend for refresher training.
Successful applicants will be invited to contact the Facility to arrange a suitable training date, usually close to the start of the project.
Training is free of charge, however applicants will be responsible for making their own way to the Facility.
Frequently asked questions
What is the practical range of the system?
The range will depend on the material being imaged and its orientation to the scanner. Assuming a matte surface with a footprint larger than the laser beam and clear atmospheric conditions, a range of approximately 150m could be expected, reducing to 120m at a high scan speed.
